For homeowners in Dublin and Powell, OH, high-end finished basements represent significant living space and property value. However, the heavy clay soils throughout northern Franklin and Delaware Counties create massive hydrostatic pressure against foundation walls after spring rainstorms and summer downpours. When groundwater rises beneath your slab, it naturally forces its way through the “cove joint”—the vulnerable seam where your basement floor meets the concrete wall.
Surface wall sealers and waterproof paints can’t withstand rising hydrostatic pressure. The only permanent solution to protect finished basements from groundwater intrusion is an interior sub-slab perimeter drainage system paired with a high-capacity sump pump.
Below is an honest, transparent breakdown of what an interior French drain and sump system costs in Dublin and Powell, along with the key factors that drive project estimates.
Average Basement Waterproofing Costs in Northern Franklin & Delaware Counties
In the Greater Columbus metro area, professional interior French drain installation typically costs between $50 and $90 per linear foot. For a standard 1,000-to-1,500-square-foot home with 100 to 150 linear feet of basement perimeter, a complete sub-slab drainage and sump pump installation averages between $5,000 and $12,000.
While minor spot repairs or single crack injections might cost $500 to $1,500, they do not relieve the hydrostatic pressure beneath the floor slab. A full perimeter system intercepts water along all exterior walls, guaranteeing long-term protection.
| Scope of Work | Estimated Cost Range | What Is Included |
|---|---|---|
| Sub-Slab Drain Tile System | $50 – $90 per linear foot | Concrete trenching, gravel embedding, perforated drain tile, wall flashing, and slab re-concreting. |
| Primary Sump Pump System | $1,200 – $2,500 | Heavy-duty cast-iron submersible pump, high-capacity basin, check valve, and exterior discharge line. |
| Smart Battery Backup Sump | $1,000 – $1,800 | Secondary pump, deep-cycle marine battery, dual float switch, and power-outage alarm. |
| Full System Package (Average Home) | $6,500 – $13,500 | Complete perimeter drainage tile, wall vapor barrier, primary sump, battery backup, and full labor warranty. |
Key Factors Influencing Your Waterproofing Estimate
No two basements in Powell or Dublin are identical. Several structural and layout variables impact your final estimate:
1. Finished Basement Demolition & Restorations
If your basement is already finished with drywall, stud framing, or custom flooring, contractors must carefully cut away the bottom 12 to 24 inches of drywall and bottom plates to access the concrete slab footing. The labor involved in demolition, protection, and wall prep adds to total project costs.
2. Slab Thickness & Trenching Accessibility
Older or custom-built homes in areas like Historic Dublin or Powell estates may feature reinforced, extra-thick concrete floor slabs. Jackhammering through thicker concrete requires heavier machinery and increased labor time.
3. Sump Basin Placement & Exterior Discharge Lines
Routing the PVC discharge line from your sump pump out to your yard requires proper slope and length. Connecting the system directly to a buried exterior PVC extension line to discharge water 20+ feet away from your foundation adds to the total exterior drainage scope.
How an Interior French Drain System Works
Unlike exterior excavation—which requires digging up your entire lawn, patio, and landscaping—an interior perimeter drain works directly beneath your basement floor:
- Trenching the Perimeter: Technicians jackhammer a 12-inch-wide trench through the concrete floor along the inside edge of your foundation walls.
- Installing Sub-Slab Drain Tile: A heavy-duty, perforated pipe is laid beside the footing and surrounded by washed river gravel to collect rising groundwater.
- Wall Vapor Flashing: A rigid dimpled wall flange is attached to the base of the wall, capturing any wall seepage and channeling it directly into the subsurface pipe.
- Re-Concreting the Slab: The trench is filled with fresh concrete, restoring your smooth basement floor slab while leaving an invisible channel underneath.

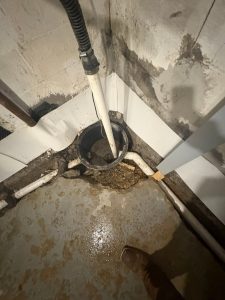

- Pumping Water Away: The subsurface pipe drains continuously into a heavy-duty sump basin, where a submersible pump discharges the water safely away from your home.
Frequently Asked Questions
How long does it take to install an interior perimeter drainage system in Dublin or Powell?
Most residential interior French drain and sump pump installations are completed in just 2 to 3 days by an experienced installation crew.
Do I really need a battery backup sump pump in Powell, OH?
Yes. Severe thunderstorm clusters in Delaware and Franklin Counties frequently cause power grid outages right when heavy rain is falling. A battery backup pump ensures your waterproofing system continues pumping water for up to 48 hours without utility power.
Does interior basement waterproofing increase home value?
Absolutely. A dry basement protected by a warrantied waterproofing system protects your home equity, allows for finished living space, and eliminates major contingencies during real estate home inspections.
Get an Honest, Transparent Waterproofing Estimate in Dublin & Powell
Protect your finished basement and home value with Central Ohio’s trusted structural and waterproofing experts. Led by a United States Marine Corps veteran, Spartan Wall Repair & Waterproofing delivers precision installation, transparent upfront pricing, and lifetime transferable warranties.
Call (614) 368-7612 today or schedule your free on-site basement inspection online!
